| 5Axis | |
| Travel in X | 400 mm |
| Travel in Y | 500 (775) mm |
| Travel in Z | 425 mm |
| Max. cutting feed in X/Y/Z | 55/70/75 m/min |
| Max. acceleration in X/Y/Z | 8/8/15 m/s2 |
| Feed force X/Y/Z | 15000/15000/2x8000 N |
| Linear glass scales | |
| BLOCK - Milling spindle unit | |
| Tool taper | HSK A-80 |
| Max. speed milling spindle | 10000 1/min |
| Max. power at 10-40/100% duty ratio | 2x27 kW |
| Max. torque at 10-40/100% duty ratio | 2x200 Nm |
| Spindle diameter in front bearing | 80 mm |
| 2 pc. Horizontal milling spindle/-s | |
| Spindle distance | 400 mm |
| Air-monitored tool clamping | |

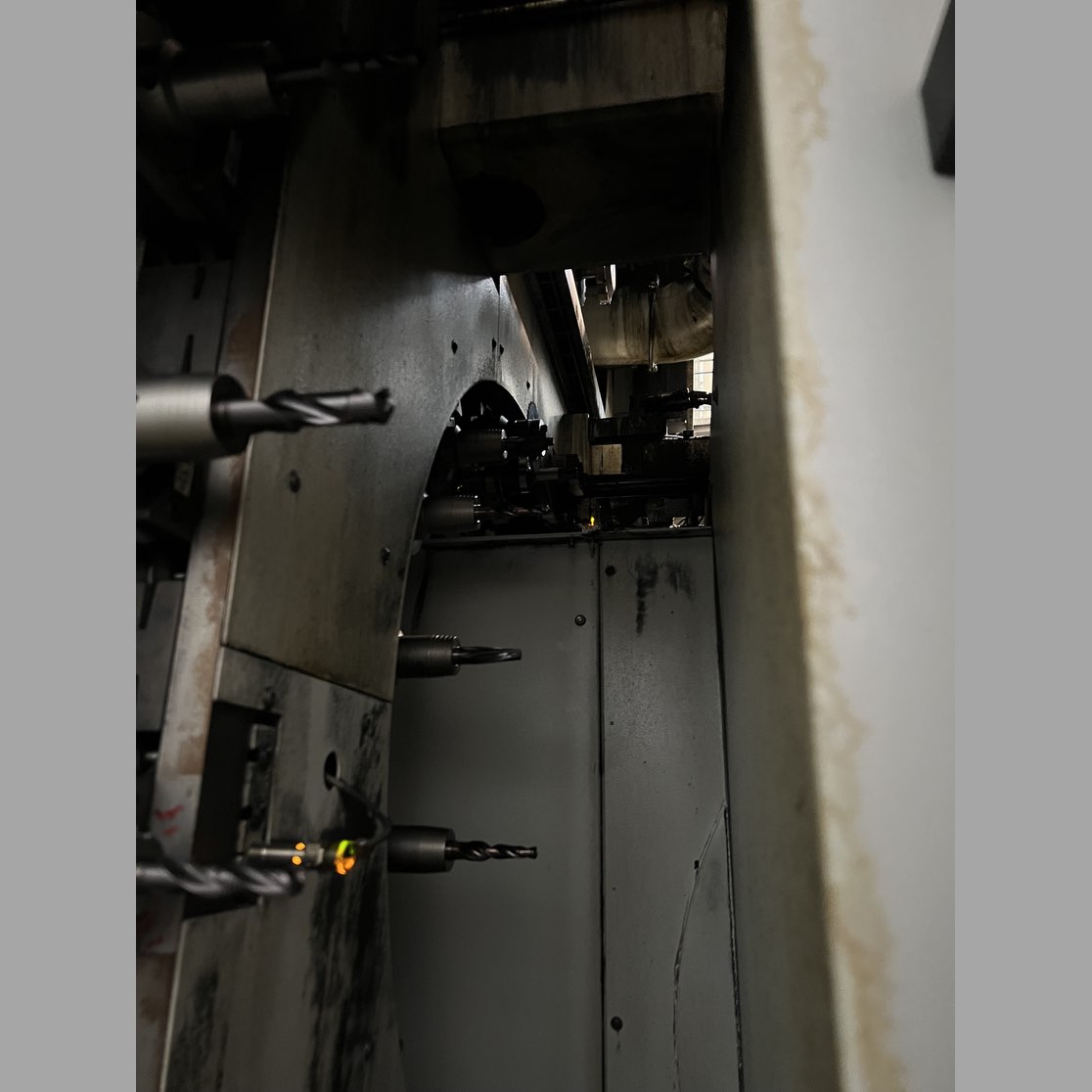

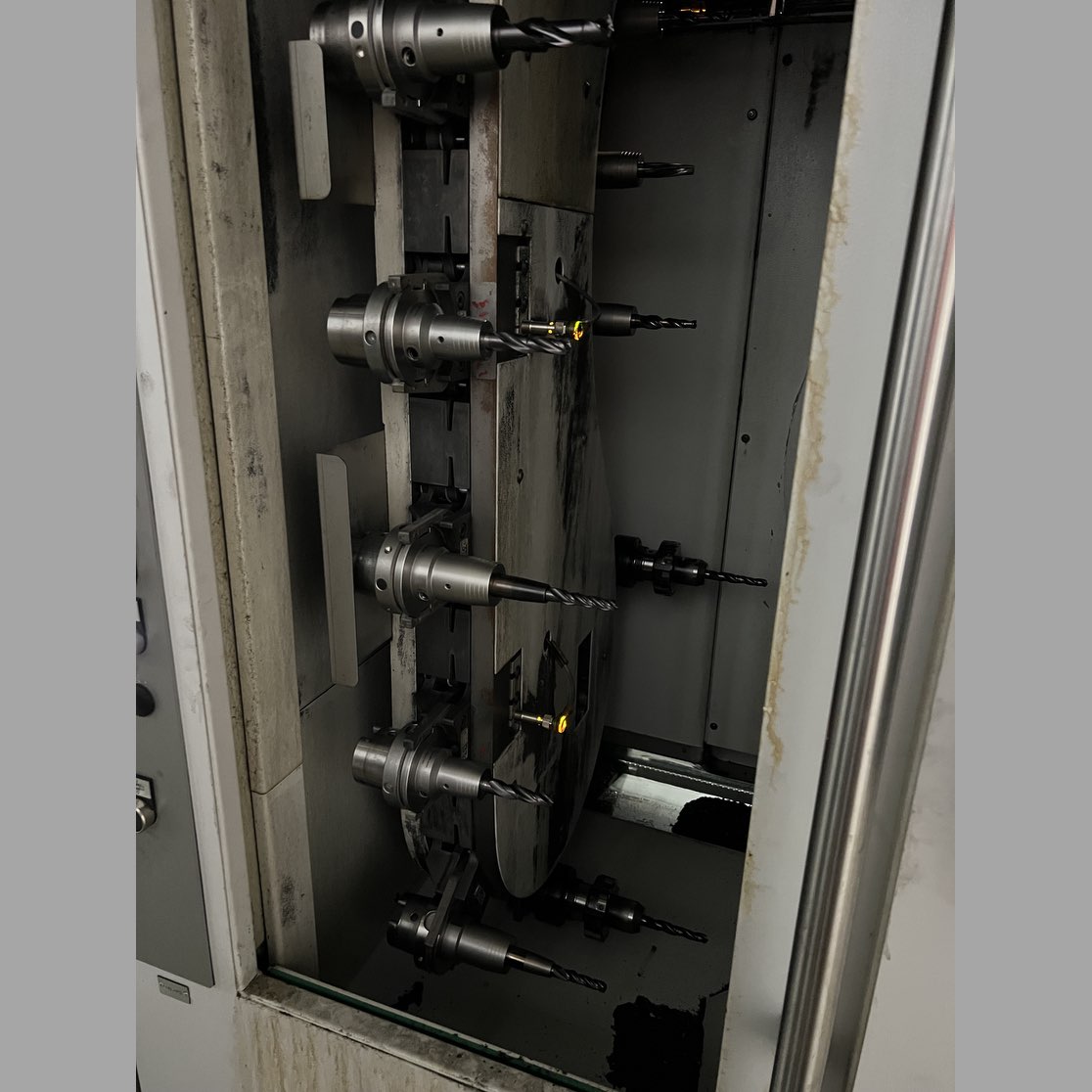

| Chain-type tool magazine | 2x30 stations |
| Max. tool diameter | 80 mm |
| Max. tool diameter without adjacent tools | 160 mm |
| Max. tool length | 300 mm |
| Max. workpiece weight | 10 kg |
| Chip-to-chip time | 2,75 s |
| Automatic workpiece changer | 2 fold |
| 2 pcs. Swivel units NC-controlled | |

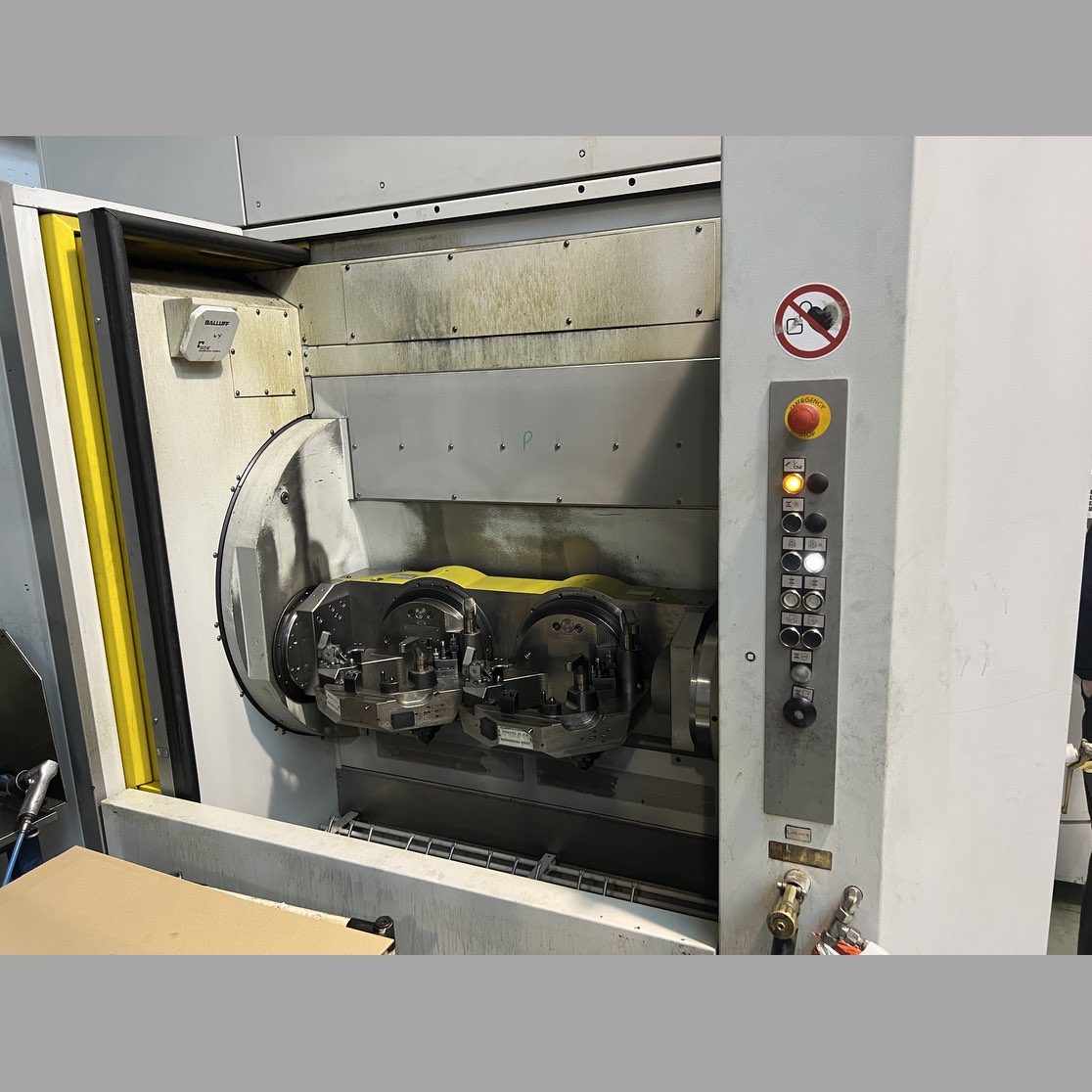

| 2 pcs. Rotary table NC-controlled on each bridge | |
| Bridge dimensions | 1030 mm |
| 2 Satz Clamping bridge supports | |

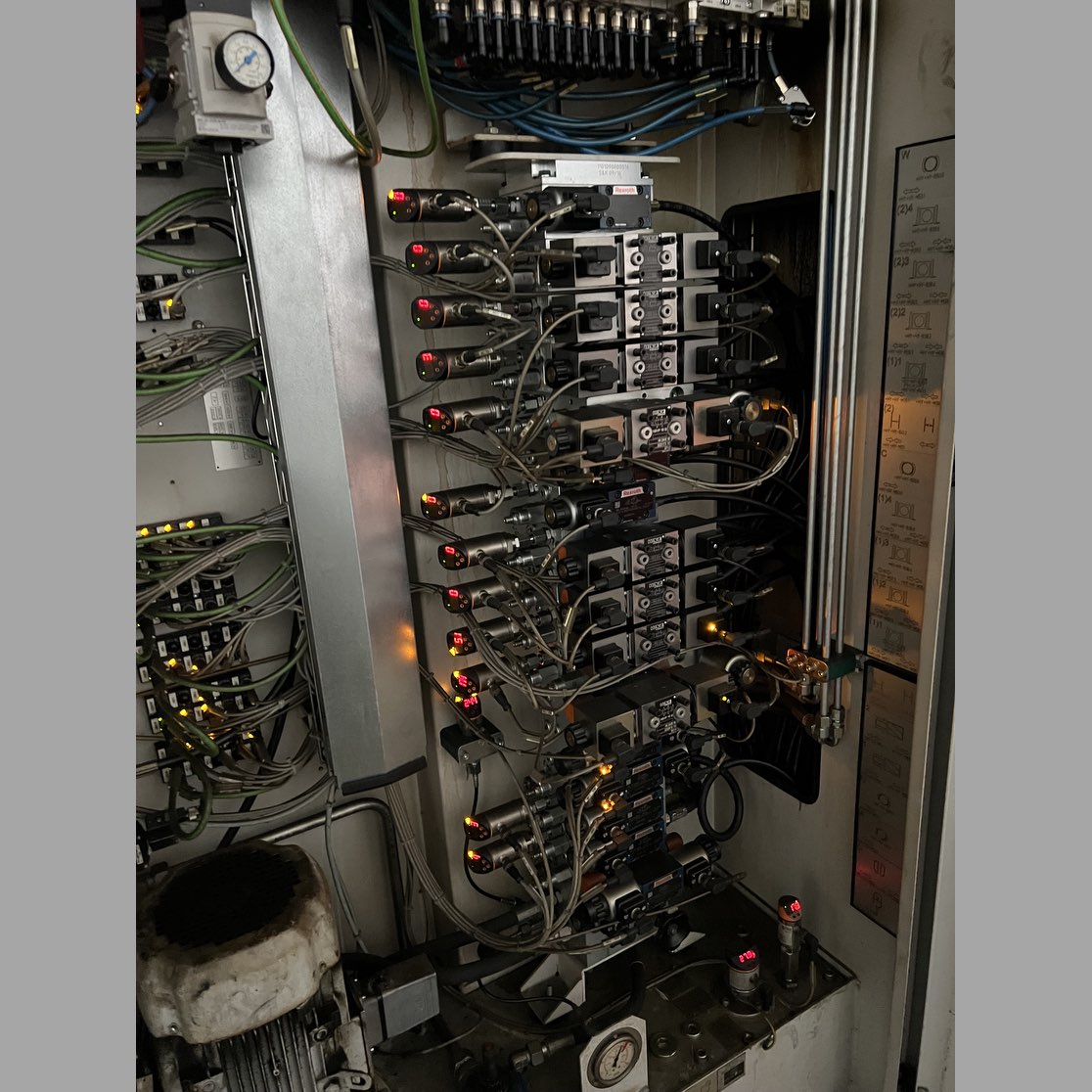

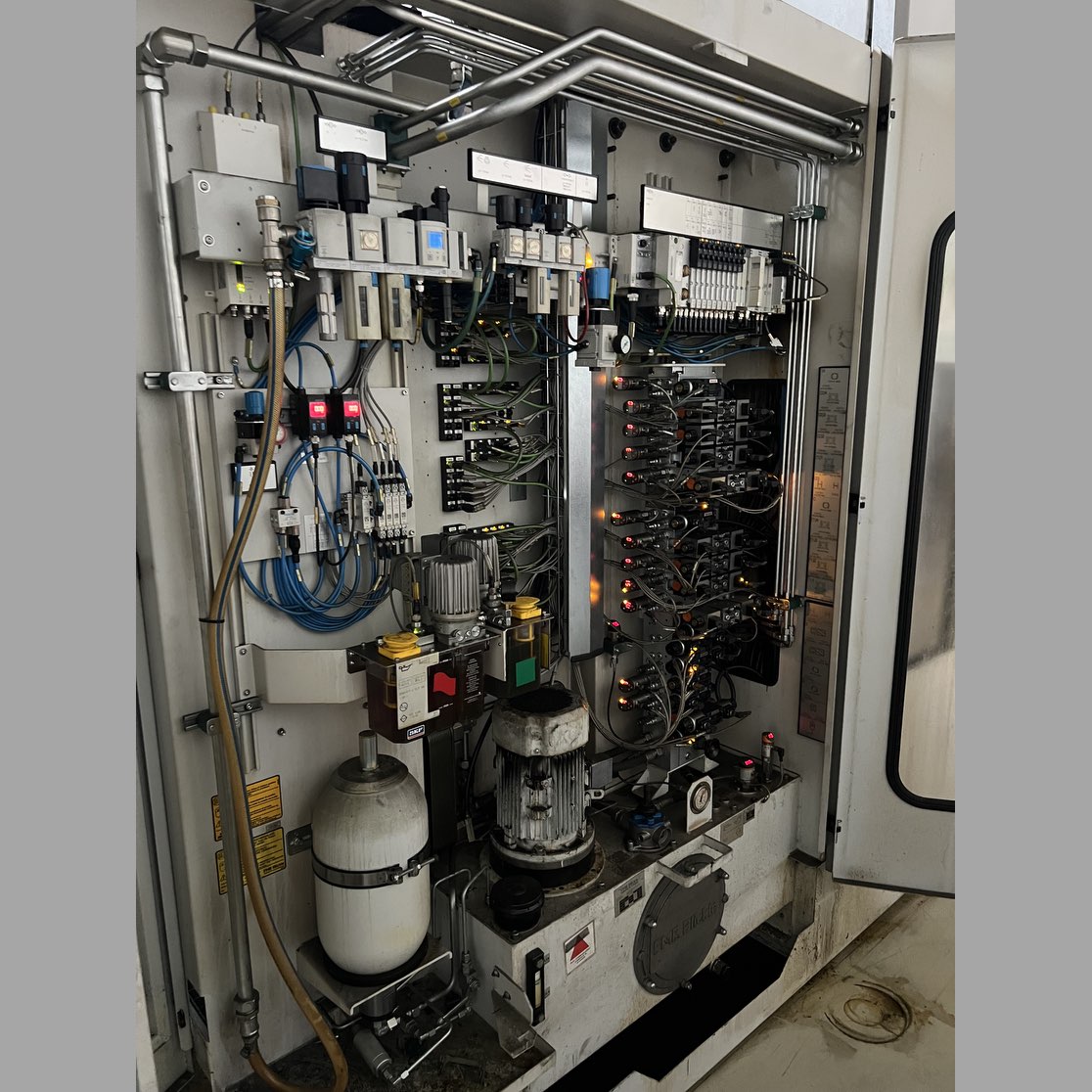

| Hydraulic clamping | |
| 6 pc. Additional clamping circuit/-s | |
| Air-monitored clamping of workpiece | |
| Tool breakage monitoring - inductive | |
| Tool breakage monitoring by MONTRONIX | |
| Tool life time monitoring with sister tool managment | |

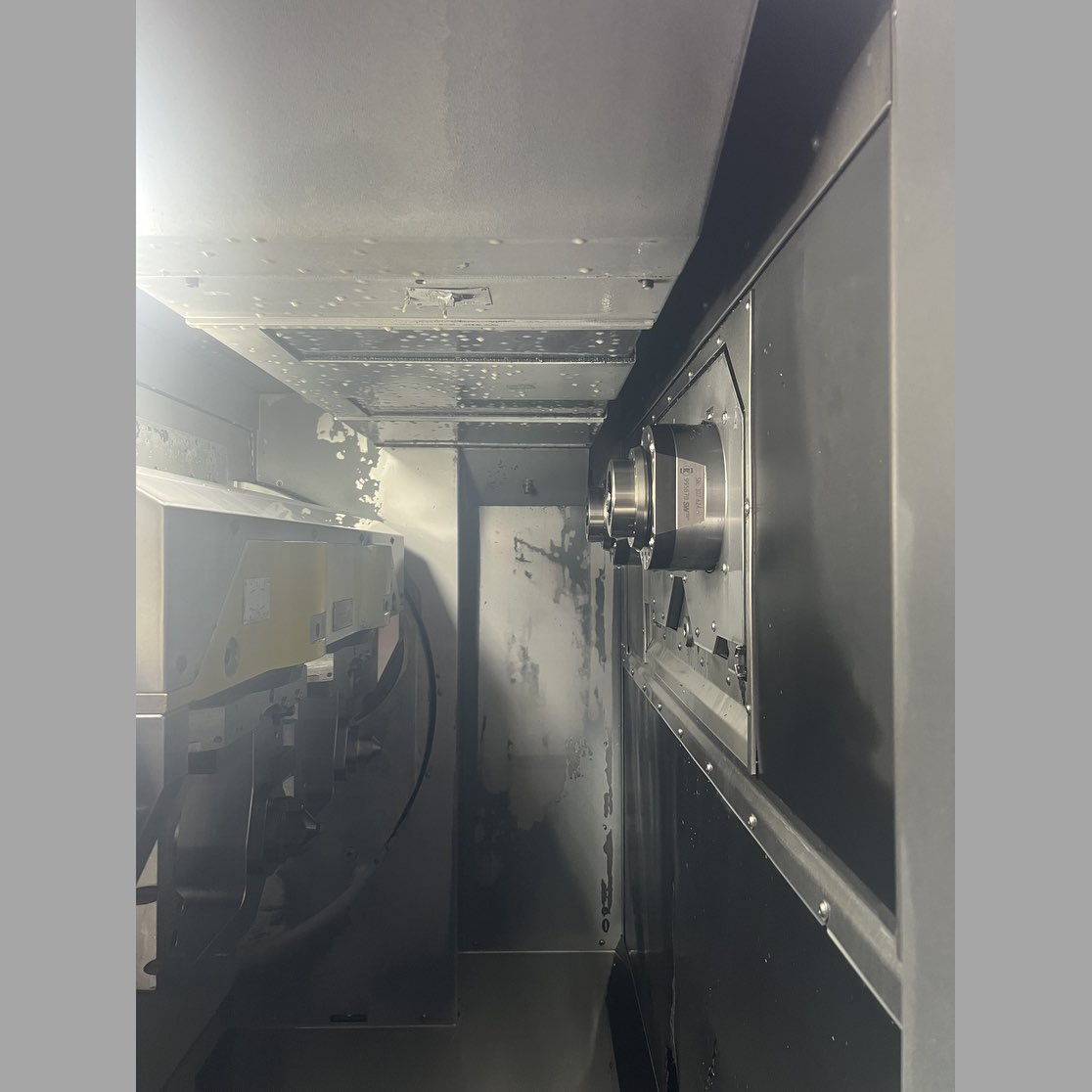

| Fully enclosed work area | |
| Automatic working range sliding door | |
| Light in working area | |

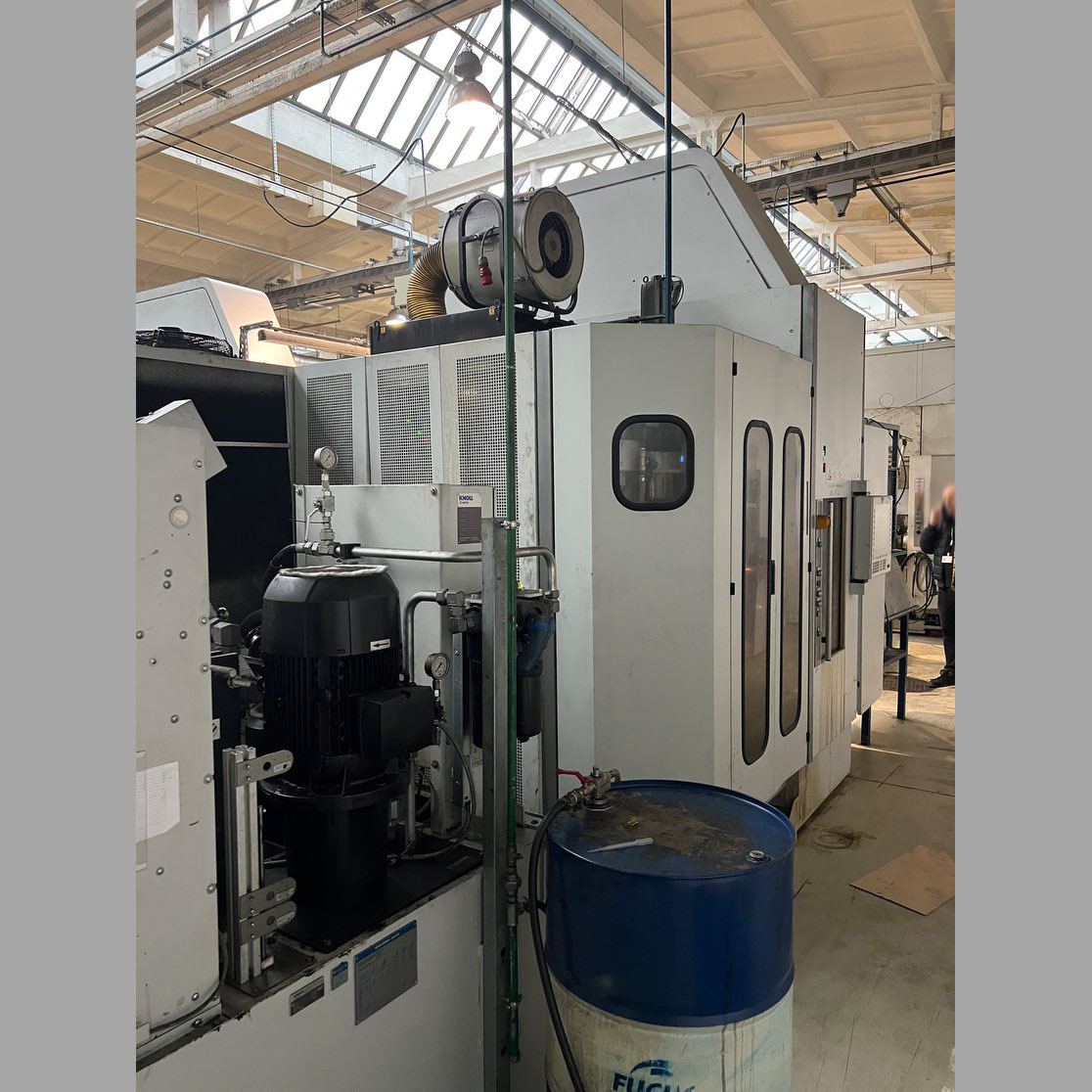

| Oil-/emulsion mist extraction unit | |

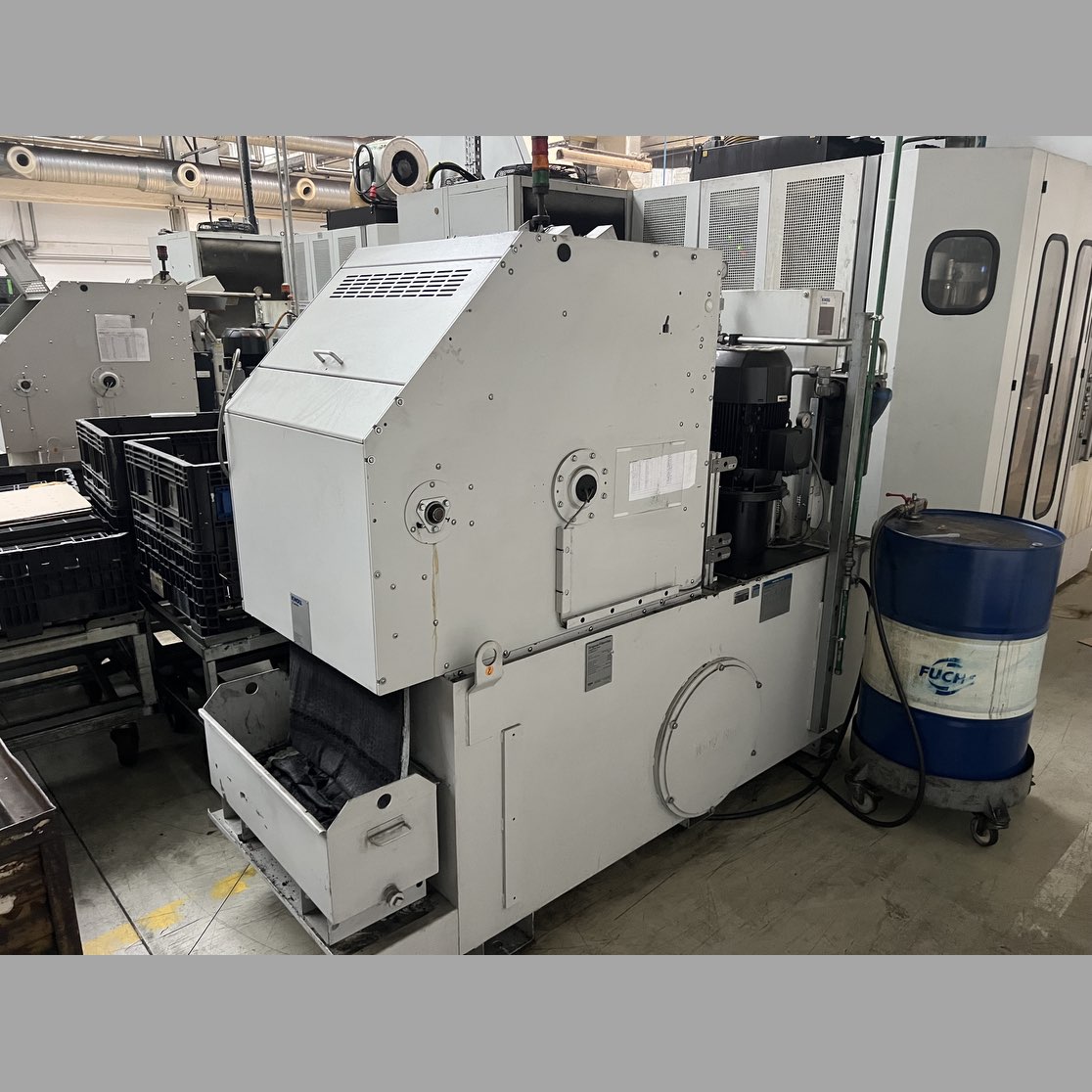

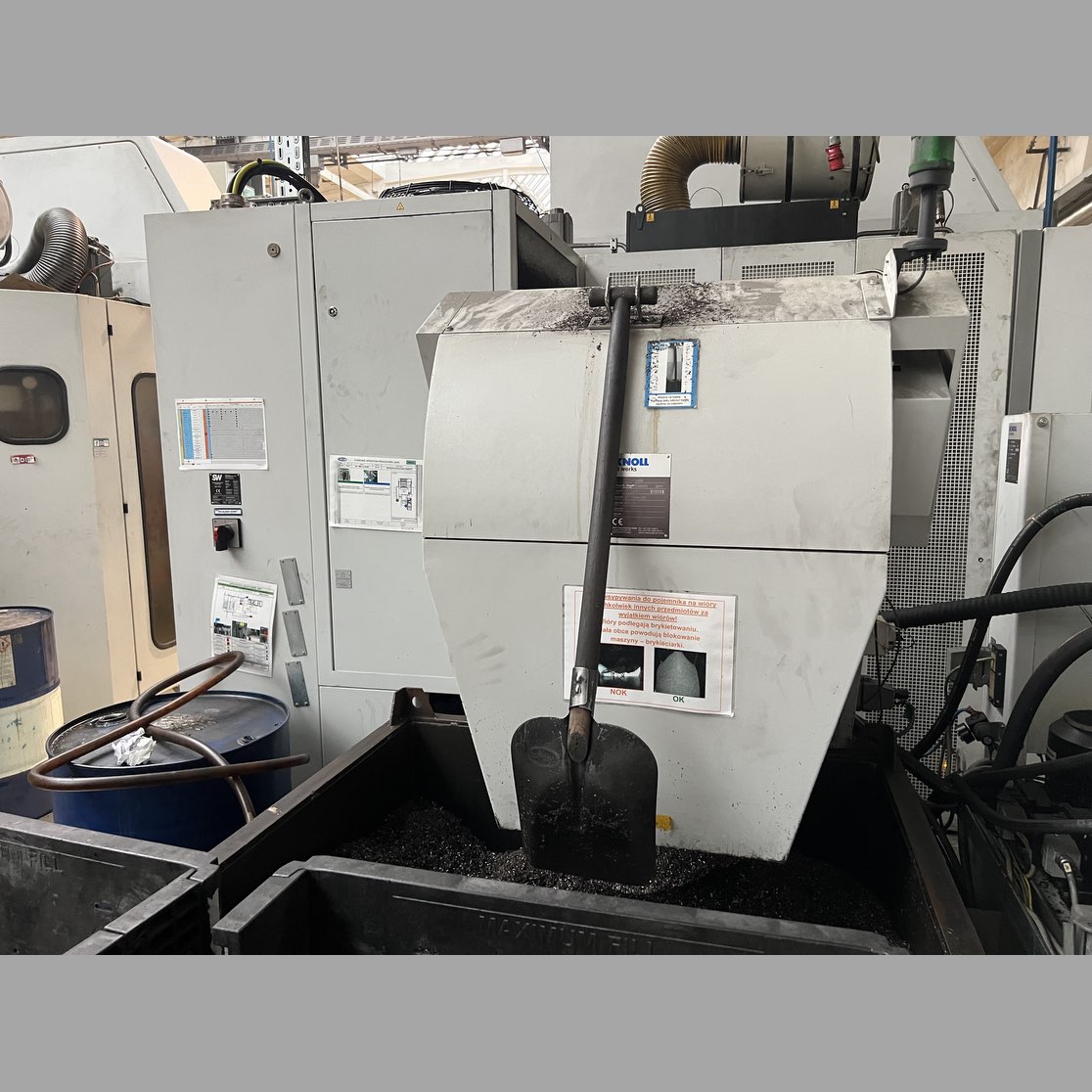

| Scraper-type chip conveyor | |
| Machine operates/operated with emulsion | |
| Internal coolant supply | |
| Flush gun | |

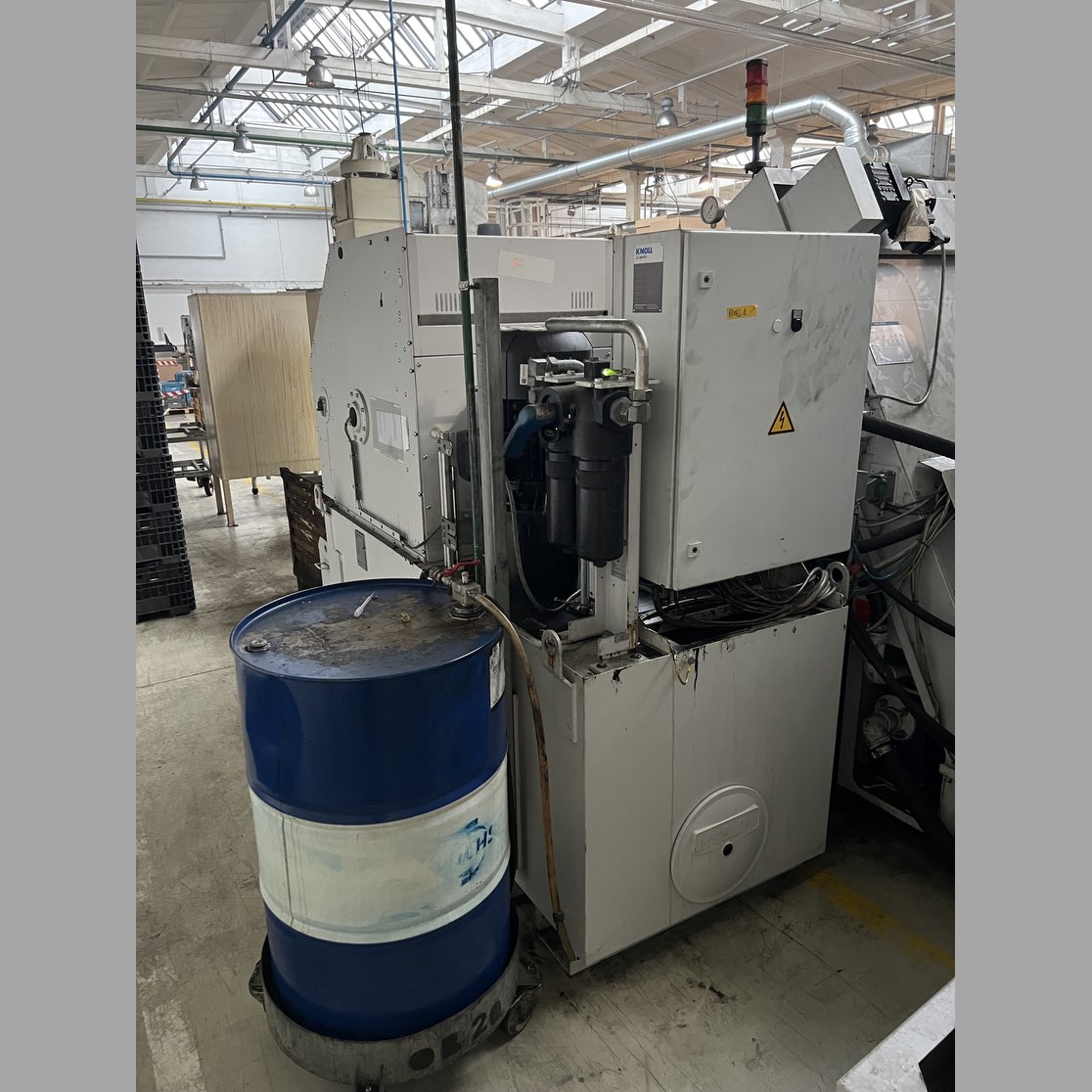

| Coolant unit with paperband filter | |
| High pressure pump | 70 bar |

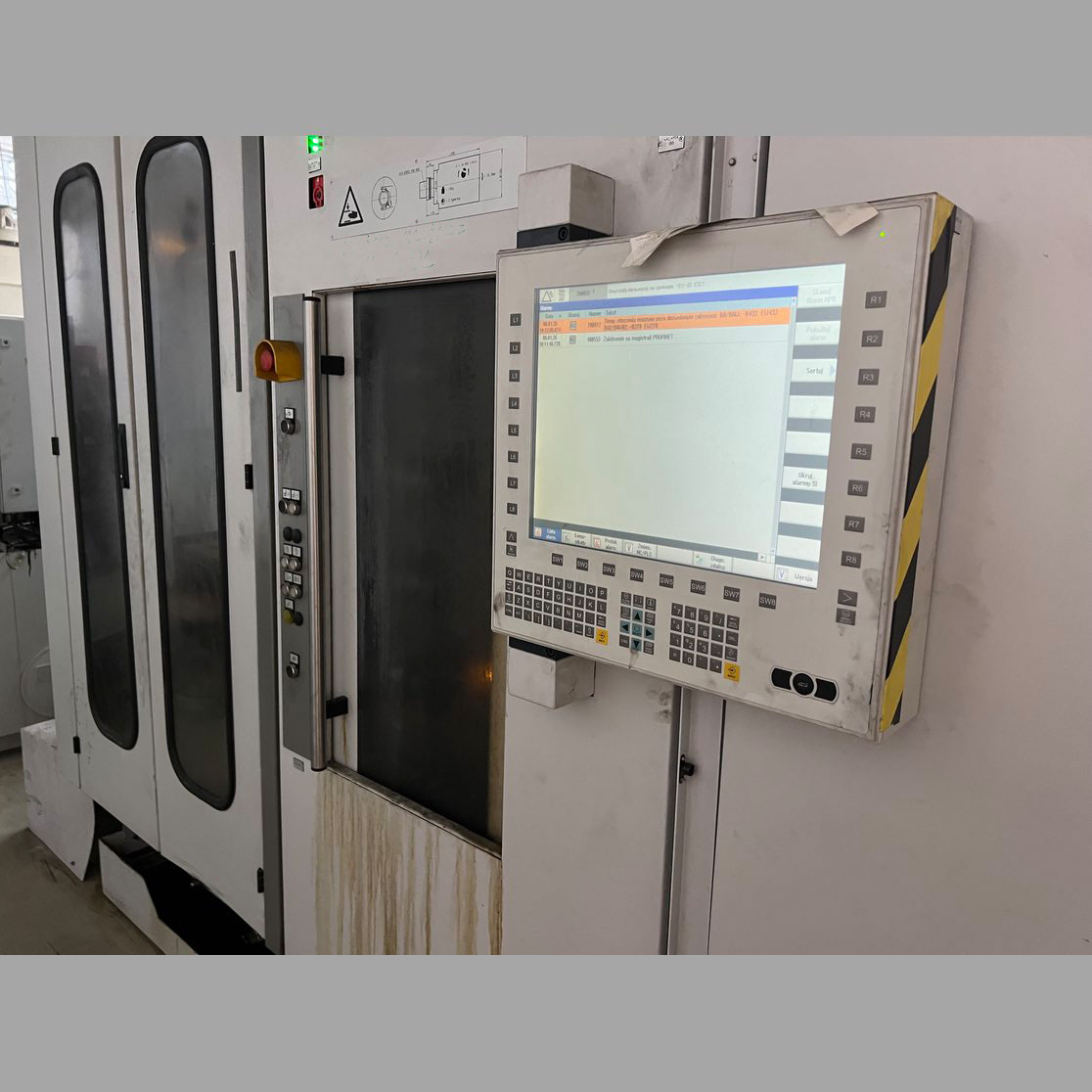

| Additionalcontrol panel for tool management | |
| Warning lamp | |
