Description

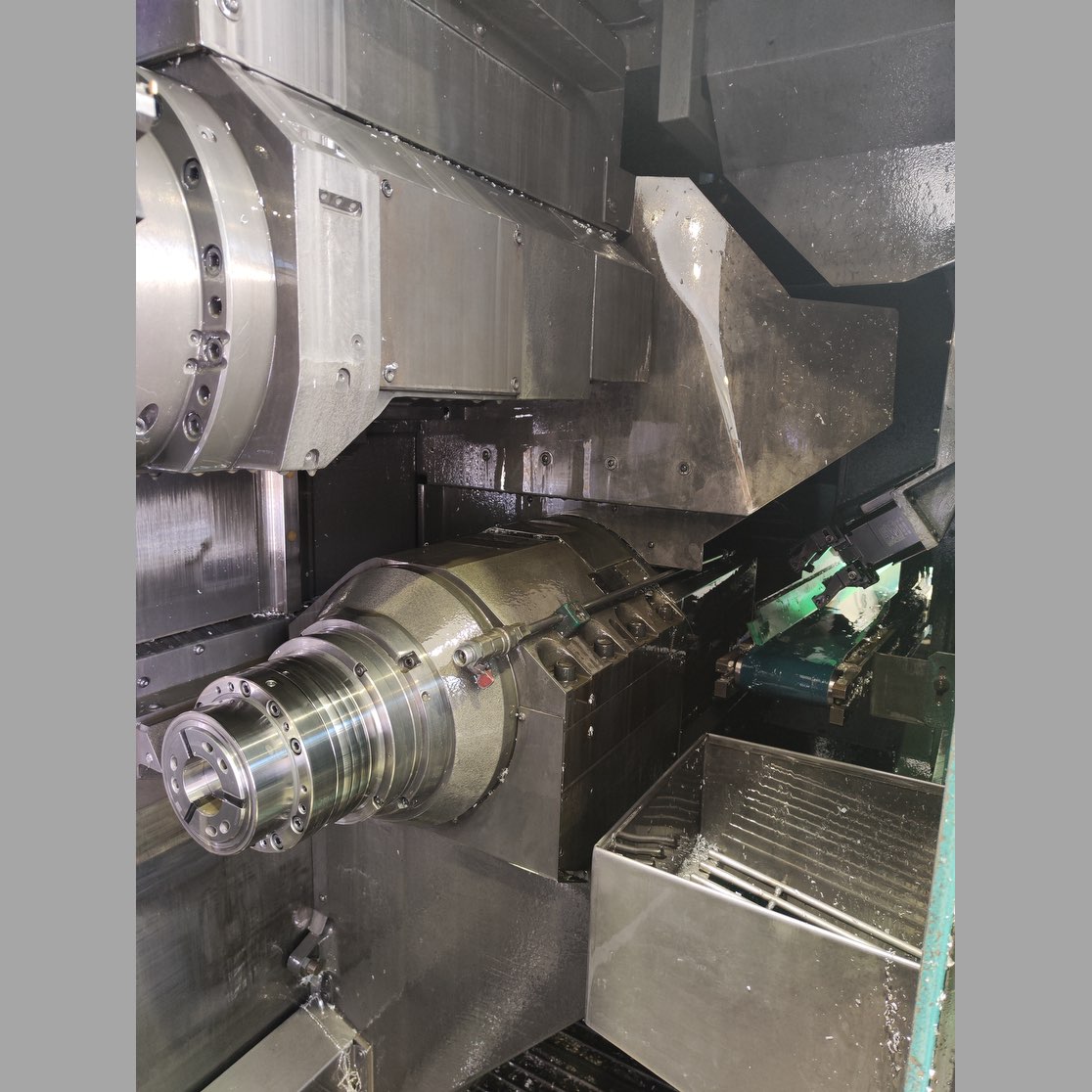

TURNING
| Max. Clamping chuck diameter | 160 mm |
| Max. speed main spindle | 5000 1/min |
| Max. power main spindle at 10-40/100% duty ratio | 32 kW |
| Max. torque main spindle at 10-40/100% duty ratio | 190 Nm |
| Spindle bore main spindle | 65 mm |
| Spindle flange size main spindle | A2-6 |
| Axis at main spindle unit | C |
| Hollow clamping cylinder at main spindle | |

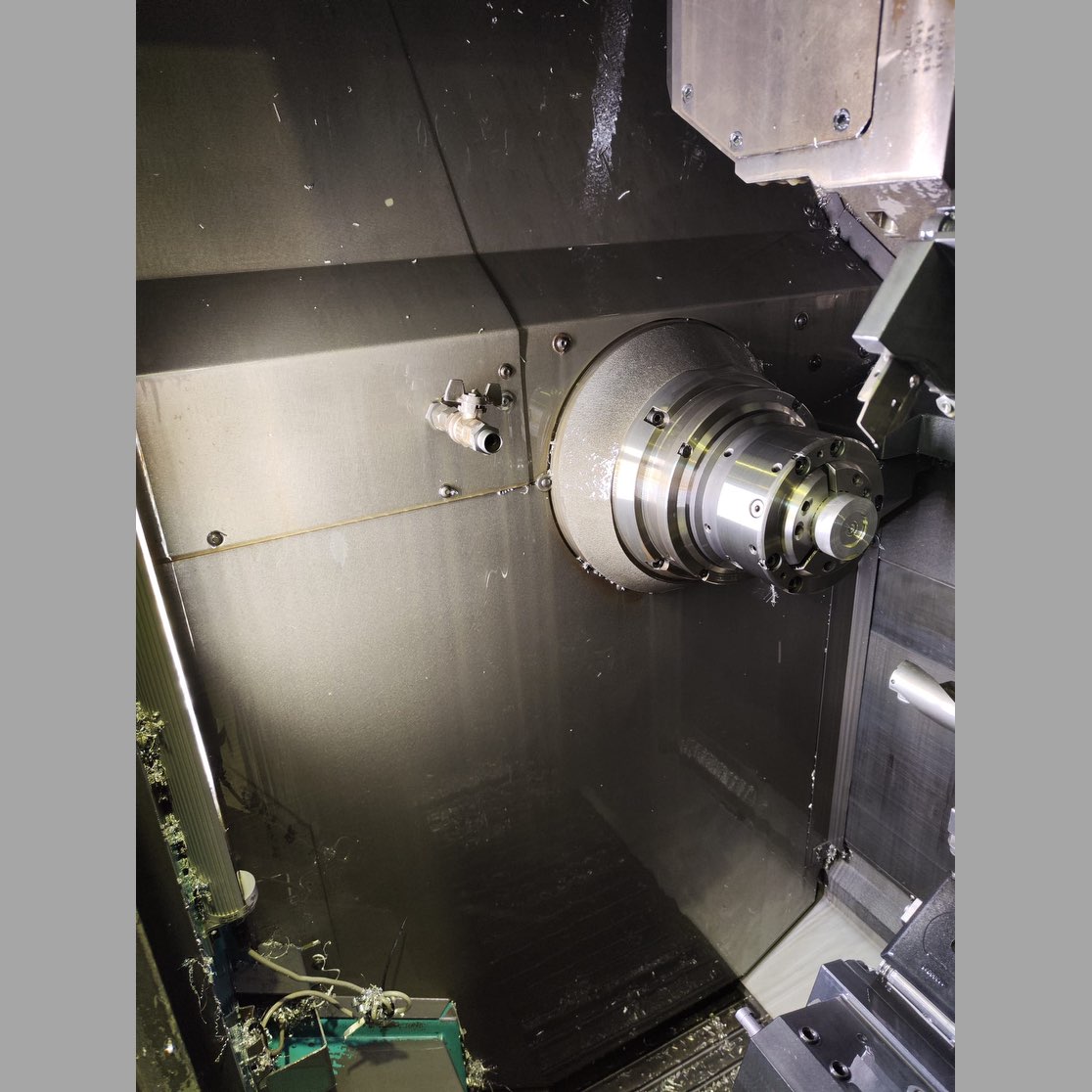

| Max. speed opposed spindle | 5000 1/min |
| Max. power opposed spindle at 10-40/100% duty ratio | 24 kW |
| Max. torque opposed spindle at 10-40/100% duty ratio | 190 Nm |
| Spindle bore opposed spindle | 65 mm |
| Spindle flange size opposed spindle | A2-6 |
| Axis at opposed spindle unit | C/Z |

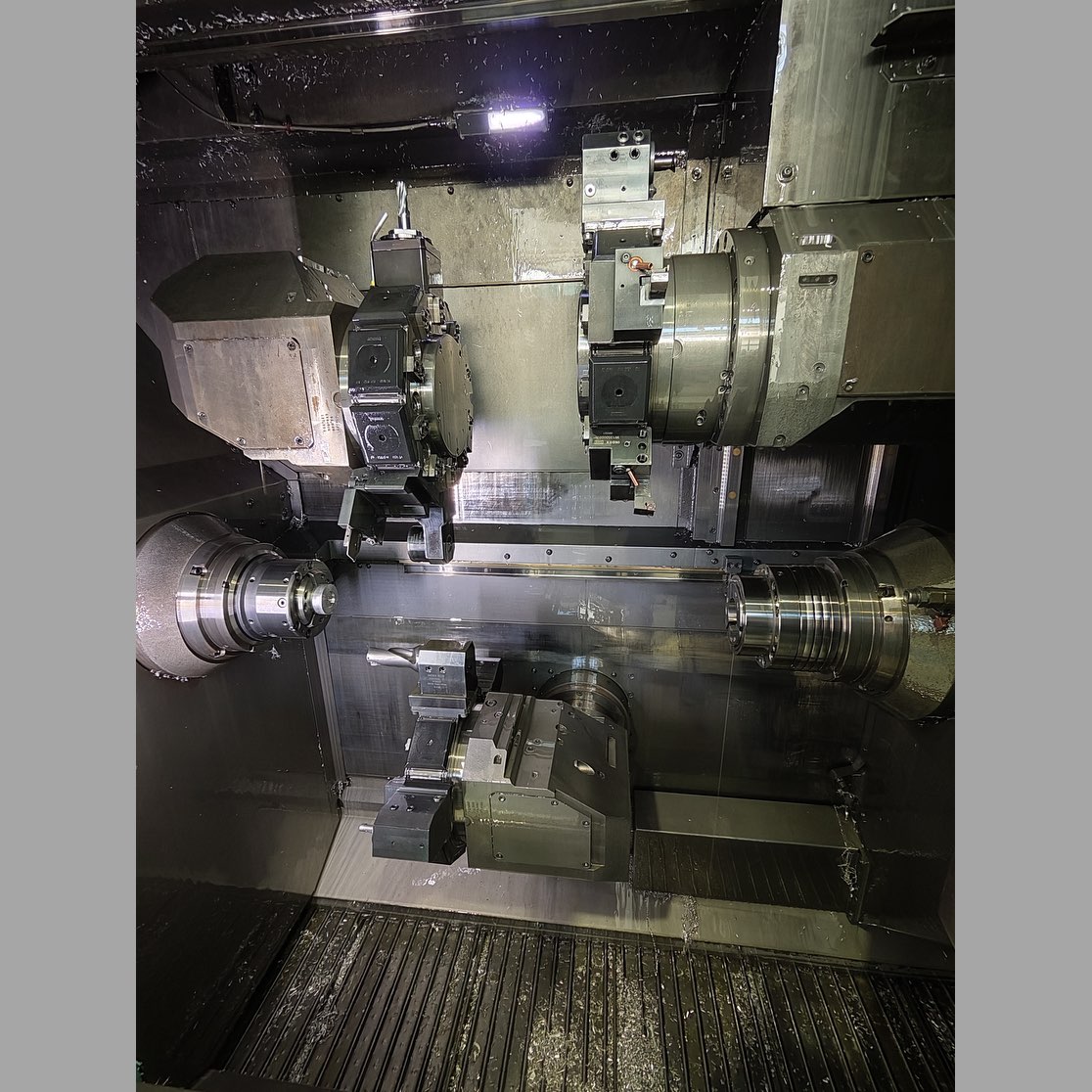

Upper turret LH side
| No. of stations/driven | 12/12 |
| Tool reception in turret | VDI 30 |
| Speed tool drive | 8000 1/min |
| Axis in turret | X/Y/Z |
| Travel in X/Y/Z | 110/100/320 mm |
| Max. rapid traverse in X/Y/Z | 30/15/50 m/min |
Upper turret RH side
| No. of stations/driven | 12/12 |
| Tool reception in turret | VDI 30 |
| Speed tool drive | 8000 1/min |
| Axis in turret | X/Z |
| Travel in X/Y/Z | 110/-/320 mm |
| Max. rapid traverse in X/Y/Z | 30/-/50 m/min |
Lower turret RH side
| No. of stations/driven | 12/12 |
| Tool reception in turret | VDI 30 |
| Speed tool drive | 8000 1/min |
| Axis in turret | X/Y/Z |
FURTHER EQUIPMENT

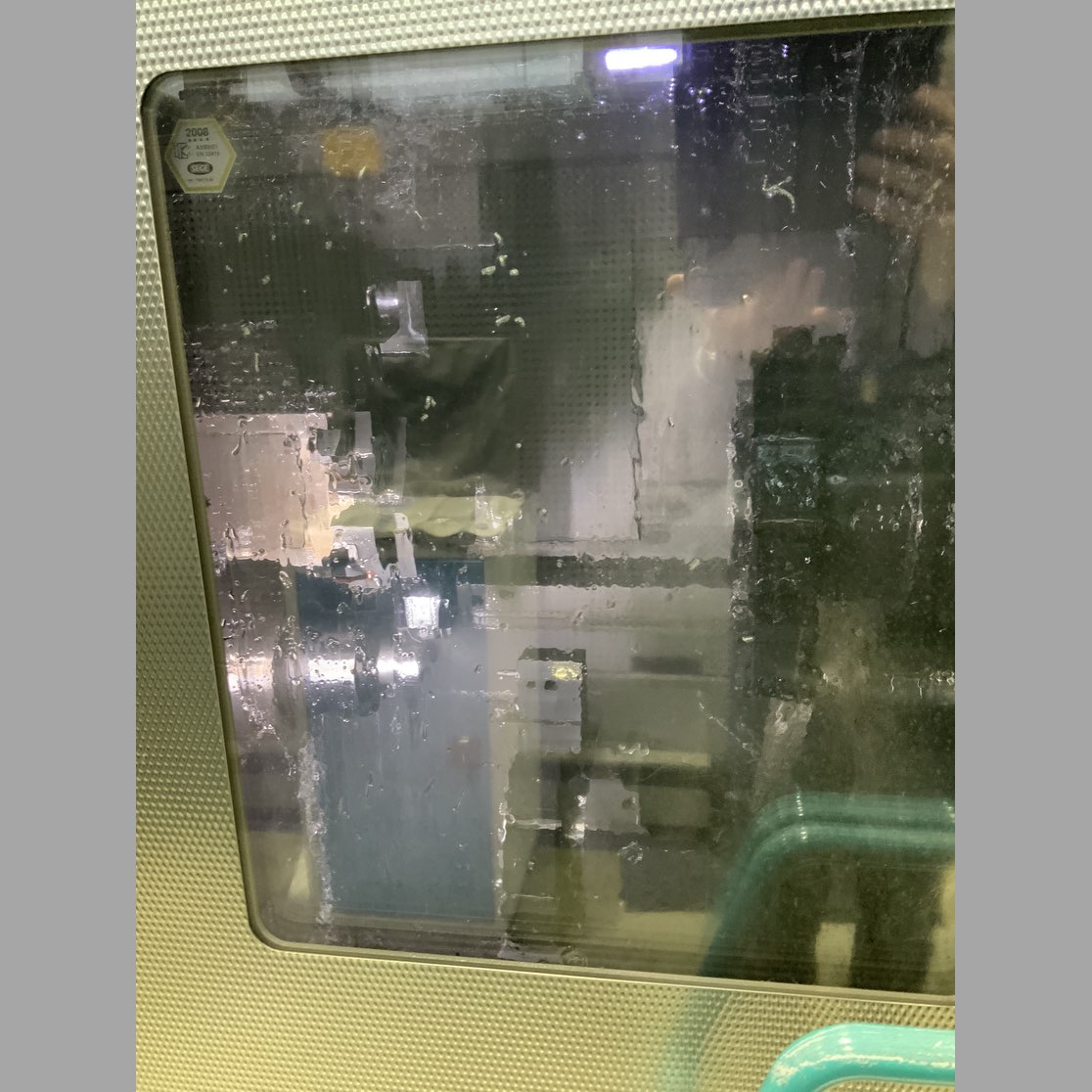

| Fully enclosed work area | |
| Light in working area | |
| Preparation for central oil-/emulsion mist extraction unit | |

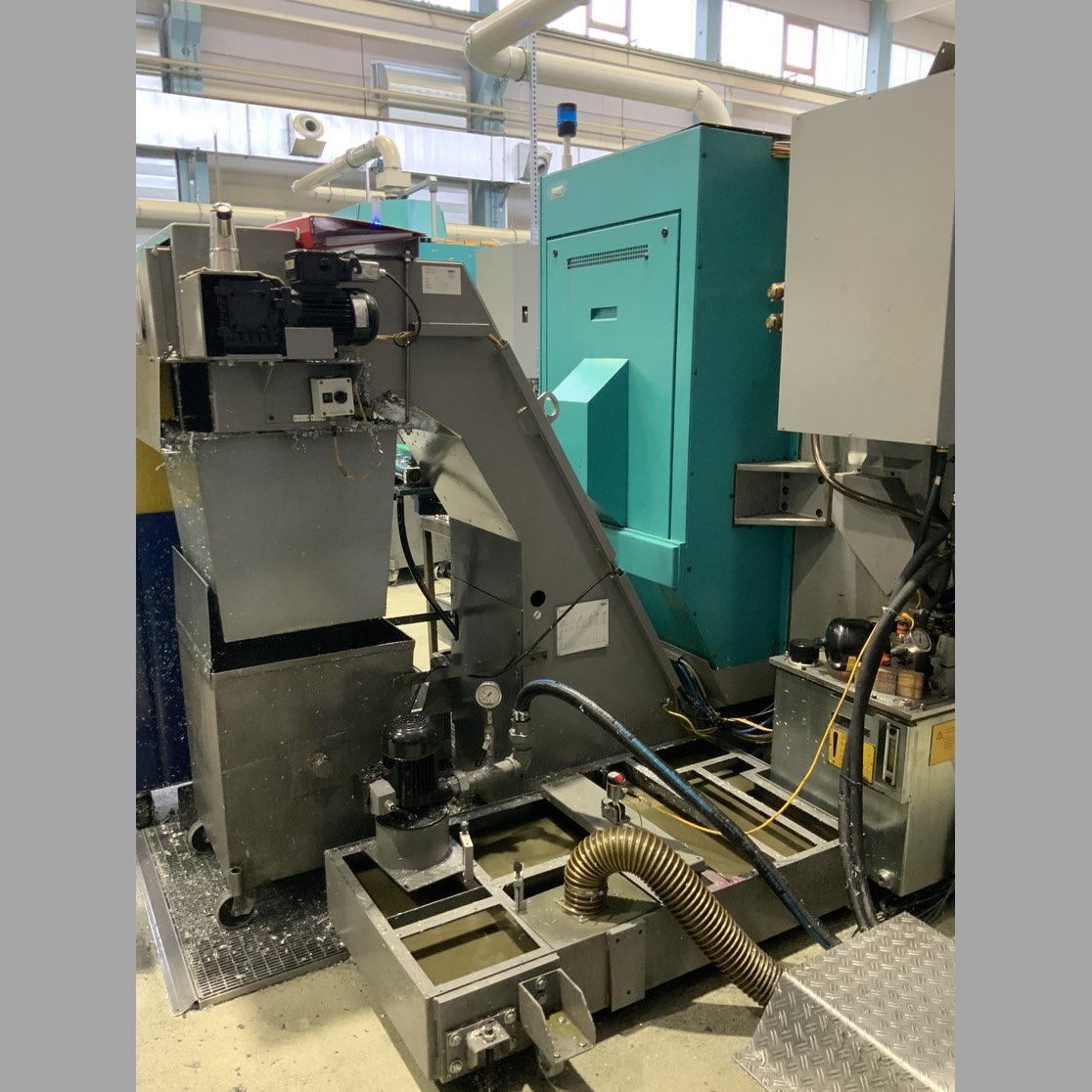

| Slat band chain chip conveyor | |
| Machine operates/operated with oil | |

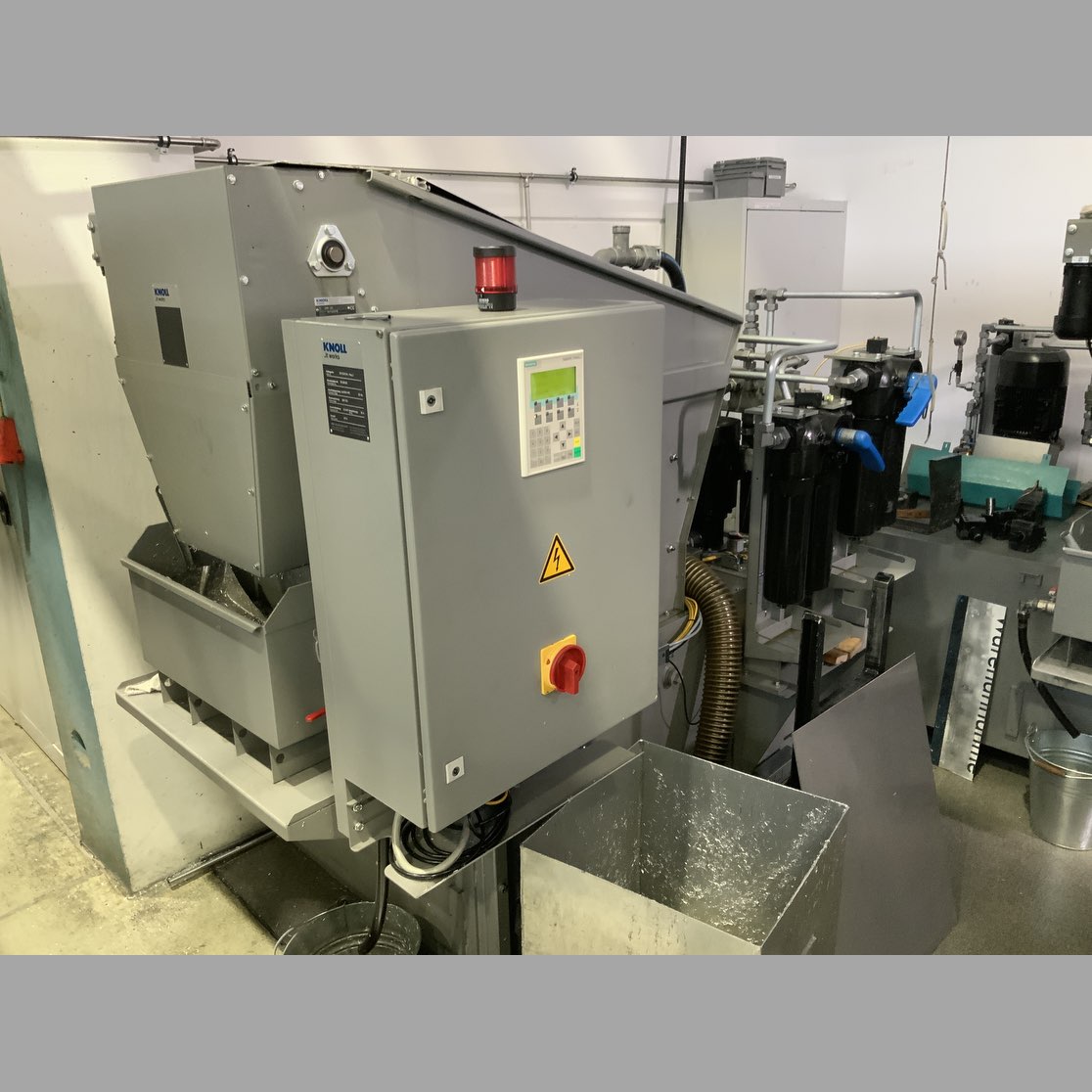

| Coolant unit with vacuum rotation filter | |

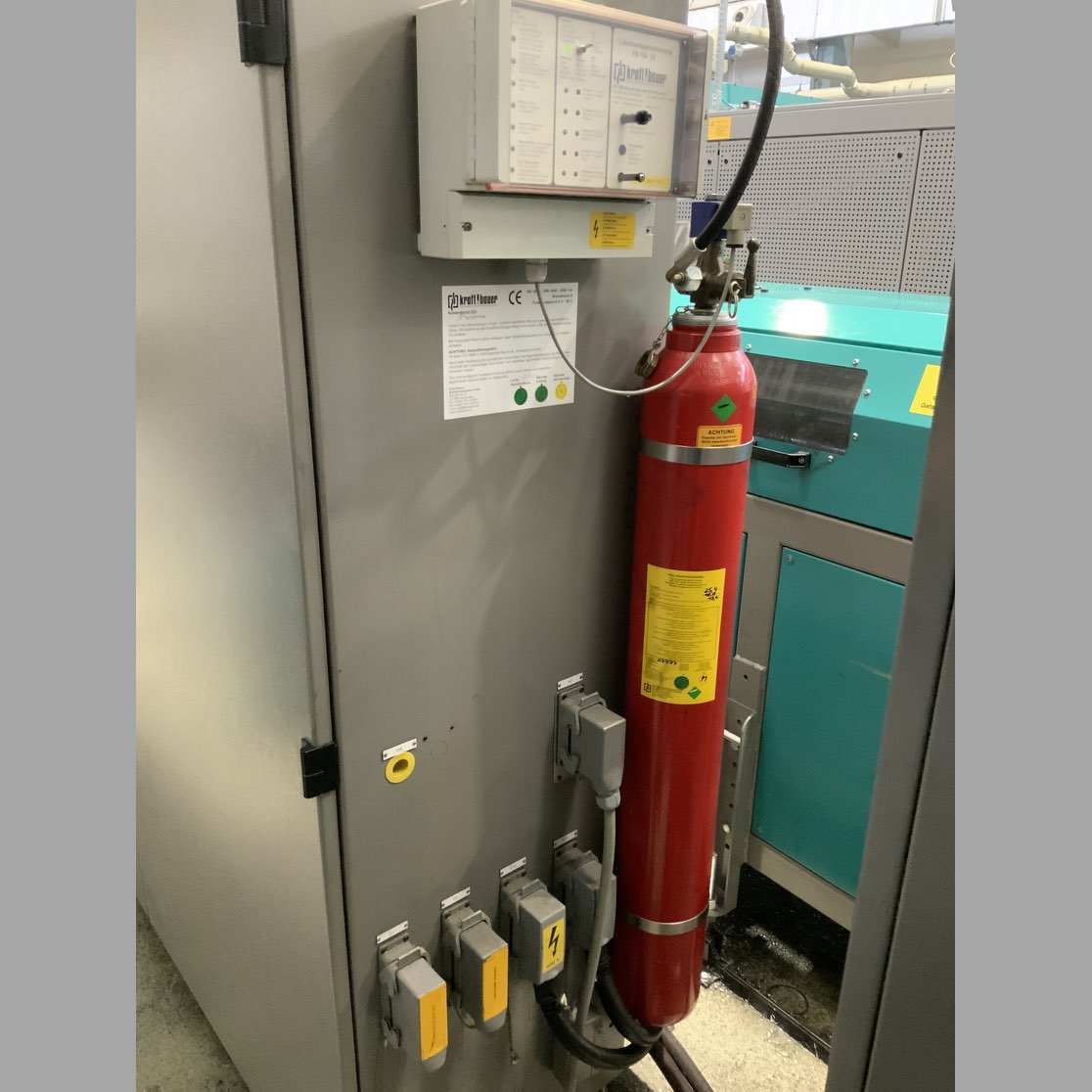

| Automatic CO2-fire extinguishing system | |

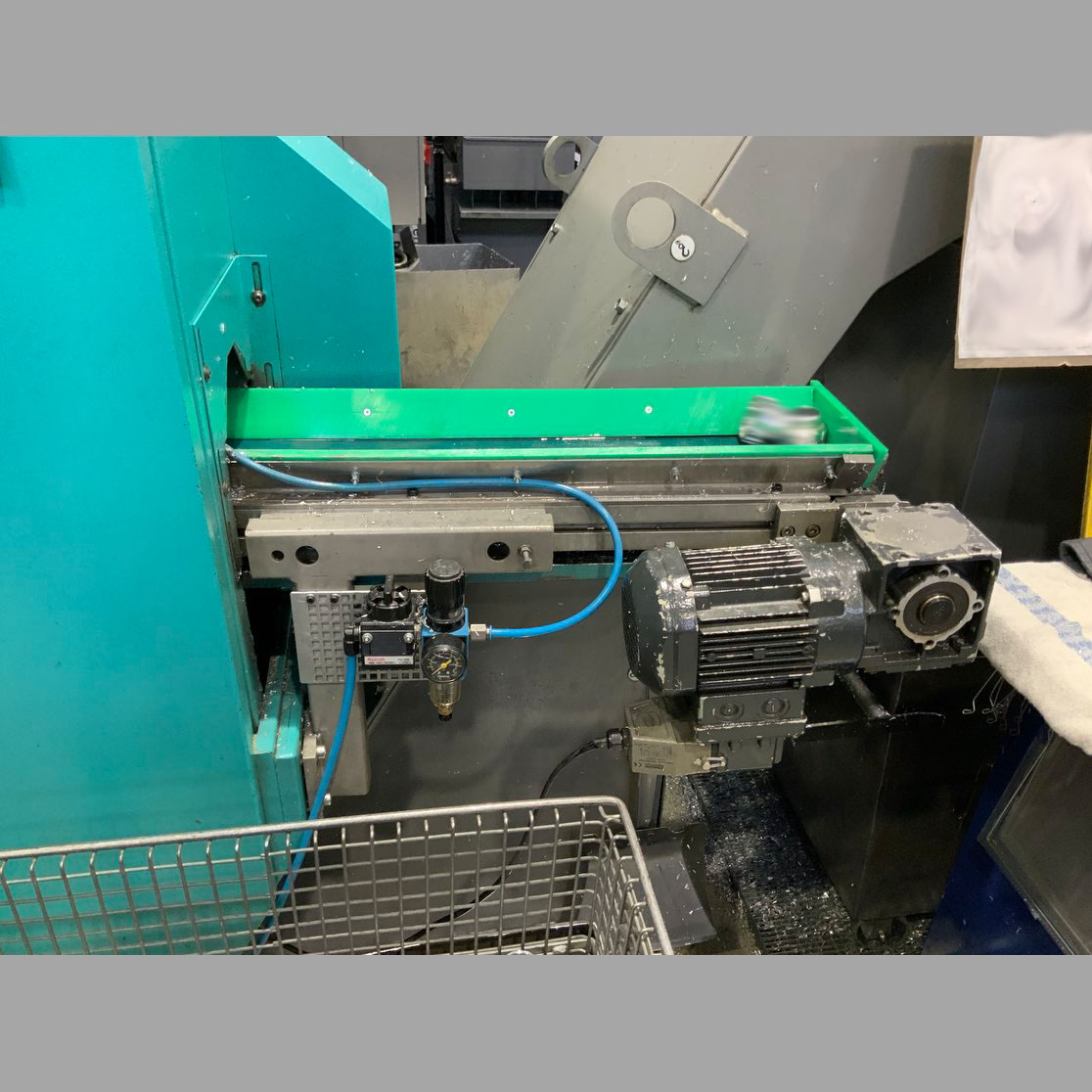

| Part outfeed conveyor | |
| Finish-part pick-up unit | |

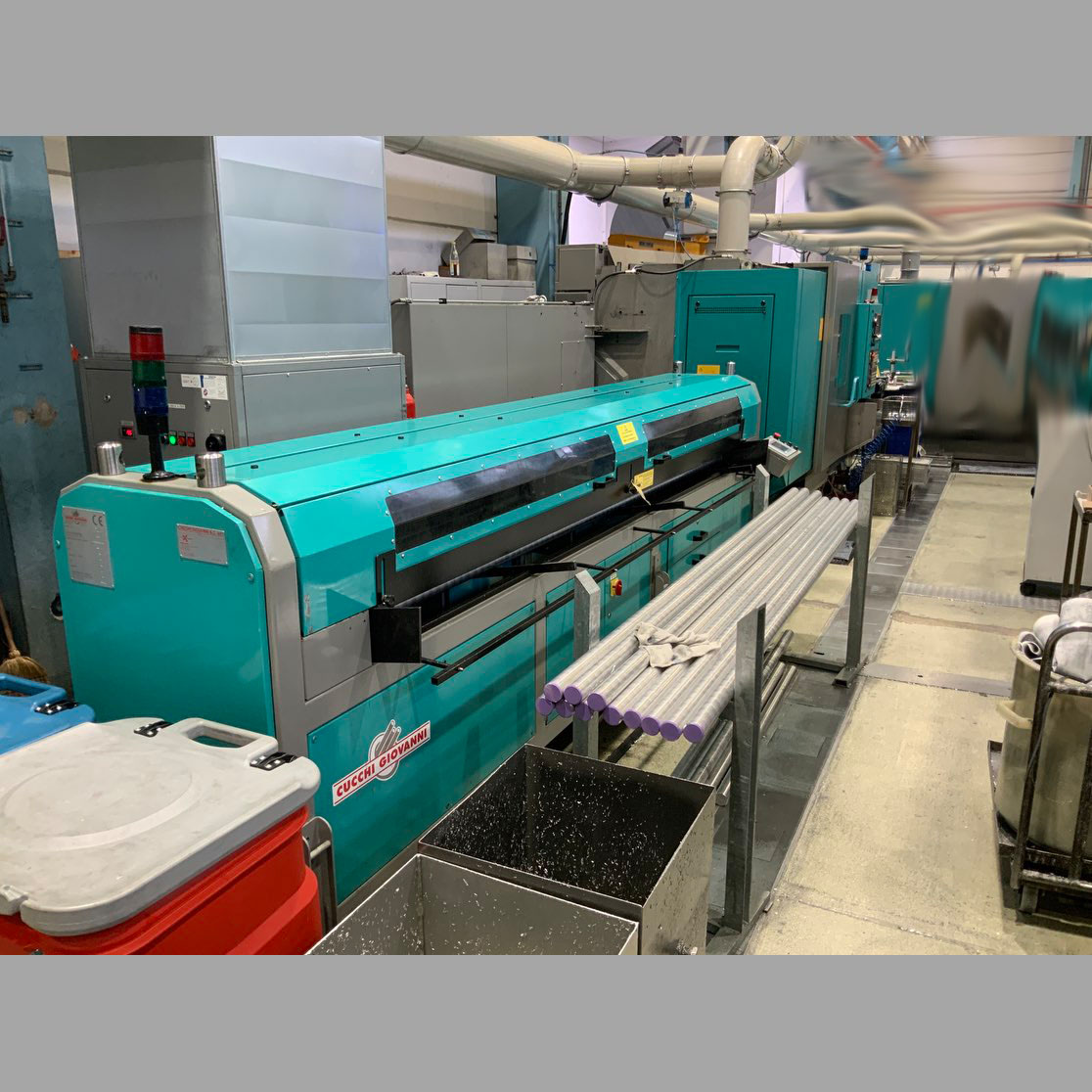

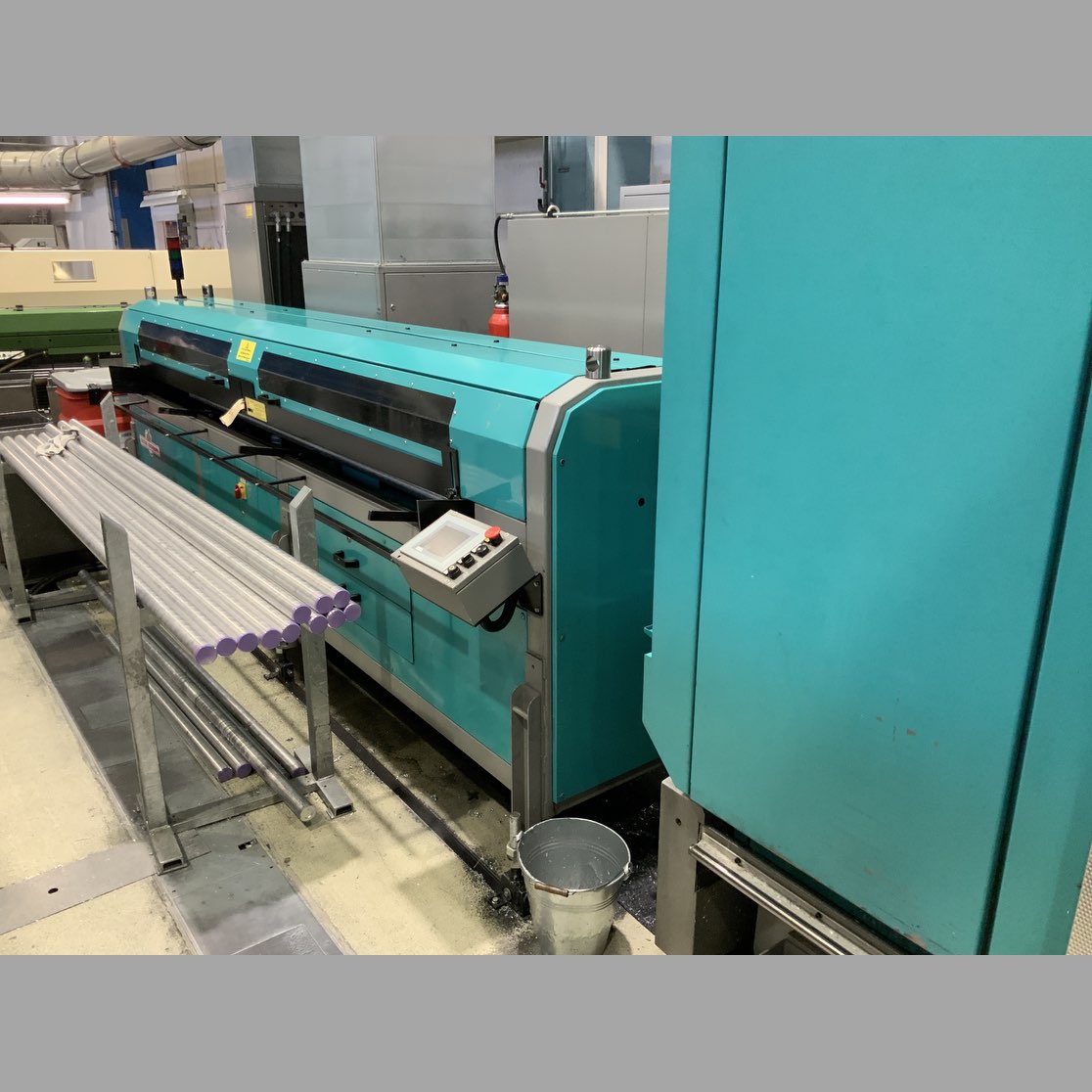

| Bar loader/magazine CUCCHI GIOVANNI | |
| Max. bar diameter | 65 mm |
| Max. bar length | 3000 mm |
GENERAL TECHNICAL DATA
| Total power requirement | 72 kVA |
| Machine weight approx. | 9000 kg |
Remarks
| We described the specified product with the upmost attention. As this product is not manufactured by us, the mentioned data and description can deviate. Herewith, we point out that they are non-binding and ask you to check them during your inspection. |
